Flame Detection Network Camera Pro
R6,589.50
- Flame detection up to 10m
- Up to 90° flame detection range

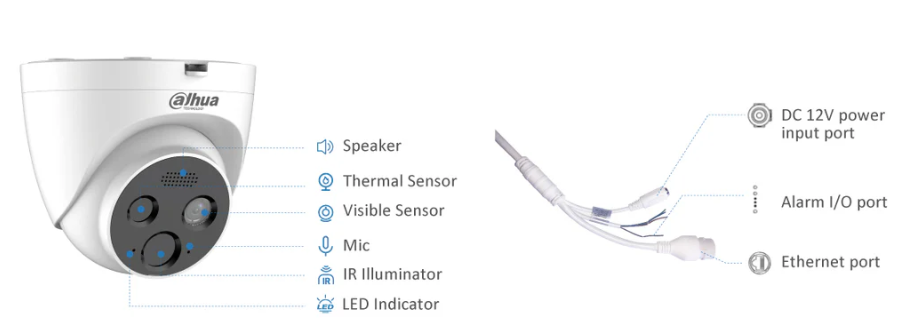

- Two-way talk help users know the real situation on-site
- Pinpoint and track the flame with high accuracy

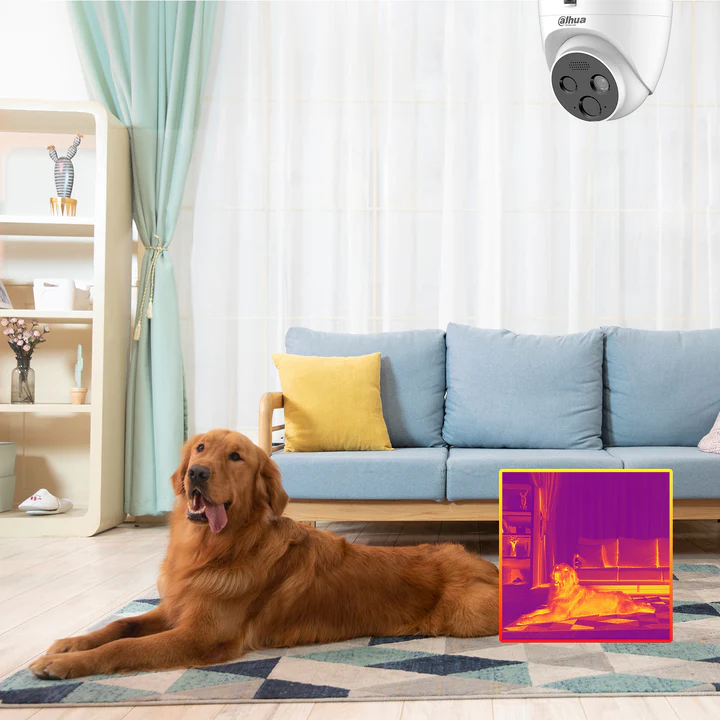

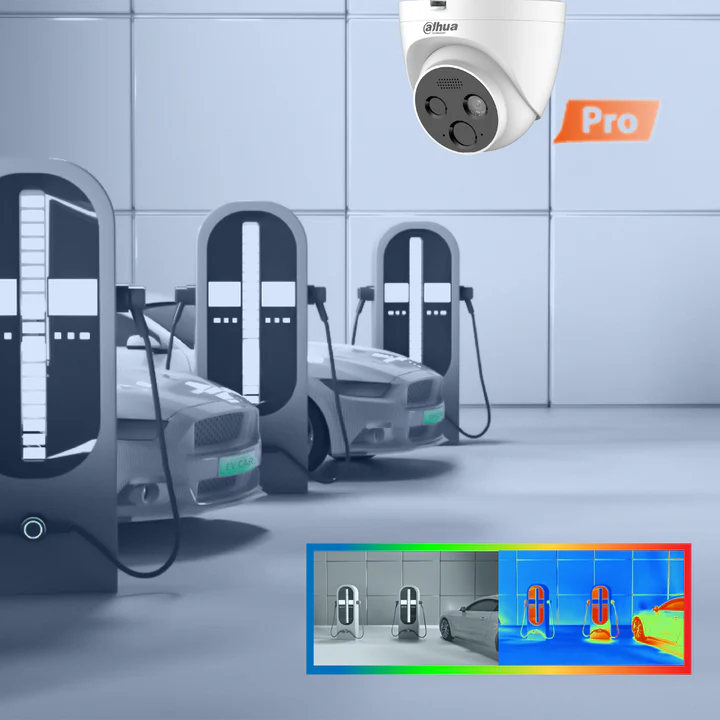

- Support visual and thermal image
- Alarm Linkage: alarmI/O port to link with other devices
- Model: DHI-HY-FT431LDP
- Certifications:
Description
- Flame detection up to 10m
- Up to 90° flame detection range
- Two-way talk help users know the real situation on-site
- Pinpoint and track the flame with high accuracy
- Support visual and thermal image
- Alarm Linkage: alarmI/O port to link with other devices
- Model: WA-CAM-431D
- Certifications:
Specification
| Model | DHI-HY-FT431LDP |
|---|---|
| Detector Type | Vanadium oxide uncooled focal plane detector |
| Effective Pixels | 120 (H) × 90 (V) |
| Pixel Pitch | 17 μm |
| Spectral Range | 8 μm–14 μm |
| Flame Detection Distance | 10 m: 10 cm × 10 cm |
| Power Supply | 12 VDC ± 20%; PoE |
| Operating Temperature | –20°C to +60°C (–4°F to +140°F) |
| Relative Humidity | ≤95% |
| Storage Temperature | –20°C to +70°C (–4°F to +158°F) |
| Bracket | Junction mount: PFA130-E |
| Lens | Included |
| Net Weight | ≤ 0.85 kg (1.87 lb) |
| Product Dimensions | φ110mm × 88.6mm (φ4.33″ × 3.49″) |
| Installation | Ceiling Mount |
